Description
- Socket: AMD Socket AM5
- CPU: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
- Chipset: AMD X670
- DDR5 Memory: 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 192
- PCI-E x16: 3
- PCI-E x1: 1
- SATA 6G: 4
- M.2 Slot: 4
- RAID: 0/1/10
- LAN: 1 x Realtek® RTL8125BG 2.5Gbps LAN
- Wi-Fi and Bluetooth: AMD Wi-Fi 6E
- USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)
- USB 3.2 ports (Rear): 1(Gen 2×2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 4 (Type-A)
- Audio ports (Rear): Realtek® ALC897 Codec
- HDMI: 1
- DisplayPort: 1
- DirectX: 12
- Form Factor: ATX
- Operating System: Support for Windows® 10 64-bit/11 64-bit
WHAT’S IN THE BOX:

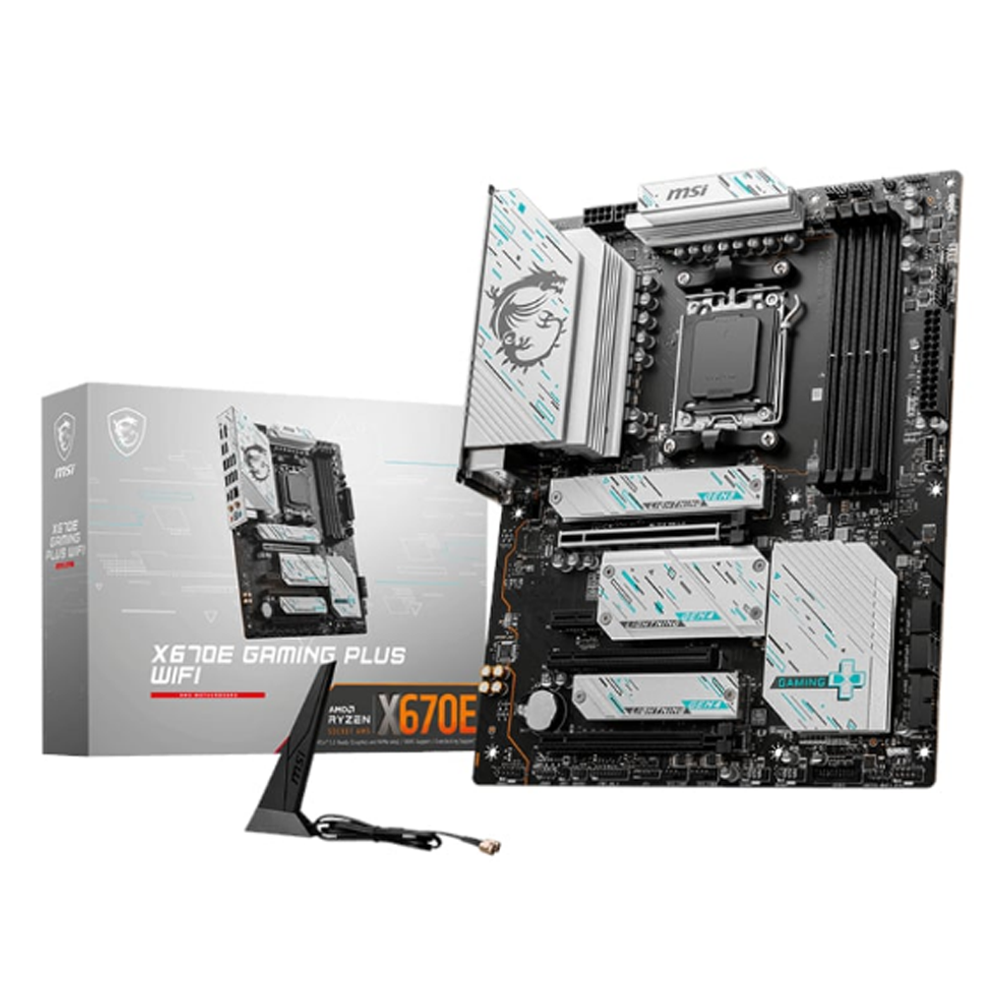

- MSI MAG X670E Gaming Plus Wi-Fi ATX Motherboard – Black x1
- Wi-Fi Antenna x1
- SATA cables x2
- M.2 Standoff Screws/Sets x3
- M.2 Plate Screw x1
- Quick Install Guide x1
