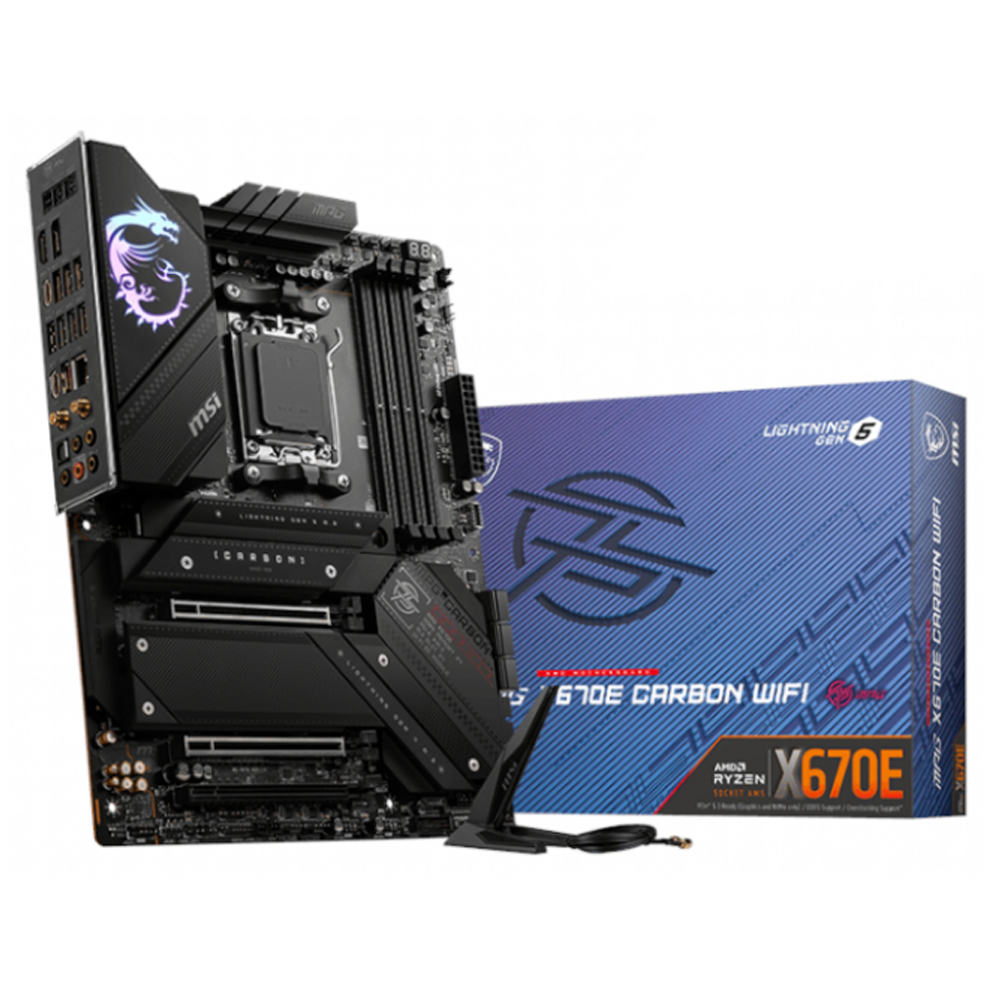

MSI MPG X670E CARBON WIFI AMD AM5 ATX Gaming Motherboard

R13699,00

Add to wishlist
Compare
Categories: , Tags: , , , , , , , , , ,
  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
  • Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr
  • High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
  • DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
  • 2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Mystic Light: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
  • Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

  • Socket: AM5
  • CPU (Max Support): Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
  • Chipset: AMD X670
  • DDR5 Memory: DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz, 1DPC 2R Max speed up to 6400+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 5400+ MHz
  • Memory Channel: Dual Channel DDR5
  • DIMM Slots: 4
  • Max Memory (GB): 256
  • PCI-E x16: 3 (2 x PCIe 5.0 and 1 x PCIe 4.0)
  • SATAIII: 6
  • M.2 Slot: 4
  • RAID: 0/1/10
  • LAN: 1x Realtek® RTL8125BG 2.5Gbps LAN
  • Wi-Fi and Bluetooth: Intel® Wi-Fi 6E module
  • USB 3.2 ports (Front): 1(Gen 2, Type-C), 4(Gen 1, Type A)
  • USB 3.2 ports (Rear): 1(Gen 2×2, Type-C), 6(Gen 2, Type A)
  • USB 2.0 ports (Front): 4
  • USB 2.0 ports (Rear): 2
  • Audio ports (Rear): 7.1 Channel HD Audio (Realtek® ALC4080 Codec)
  • Type-C Display Port: 1
  • DisplayPort: 1
  • HDMI: 1
  • DirectX: 12
  • Form Factor: ATX
  • Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit

WHAT’S IN THE BOX:

  • MSI MPG X670E CARBON WIFI AMD AM5 ATX Motherboard – Black x1
  • Wi-Fi Antenna x1
  • SATA cables x2
  • EZ M.2 Clip x3
  • USB Drive x1
  • 1 to 2 RGB LED Extension Y Cable x1
  • Rainbow RGB LED Extension Cable x1
  • Quick Install Guide x1
