Description
- Socket: AM4
- CPU (Max Support): RYZEN 9
- Chipset: AMD B550 Chipset
- DDR4 Memory: 5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 2
- PCI-E x1: 2
- SATAIII: 6
- M.2 Slot: 2
- RAID: 0/1/10
- LAN: 1x Realtek® RTL8125B 2.5G LAN + 1x Realtek® RTL8111H 1G LAN
- USB 3.2 ports (Front): 1(Gen 1, Type C), 2(Gen 1, Type A)
- USB 3.2 ports (Rear): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 2
- Audio ports (Rear): 5+ Optical S/PDIF (Realtek® ALC1200 Codec)
- DisplayPort: 1
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- CrossFire: Yes
- Operating System: Support for Windows® 10 64-bit
WHAT’S IN THE BOX:

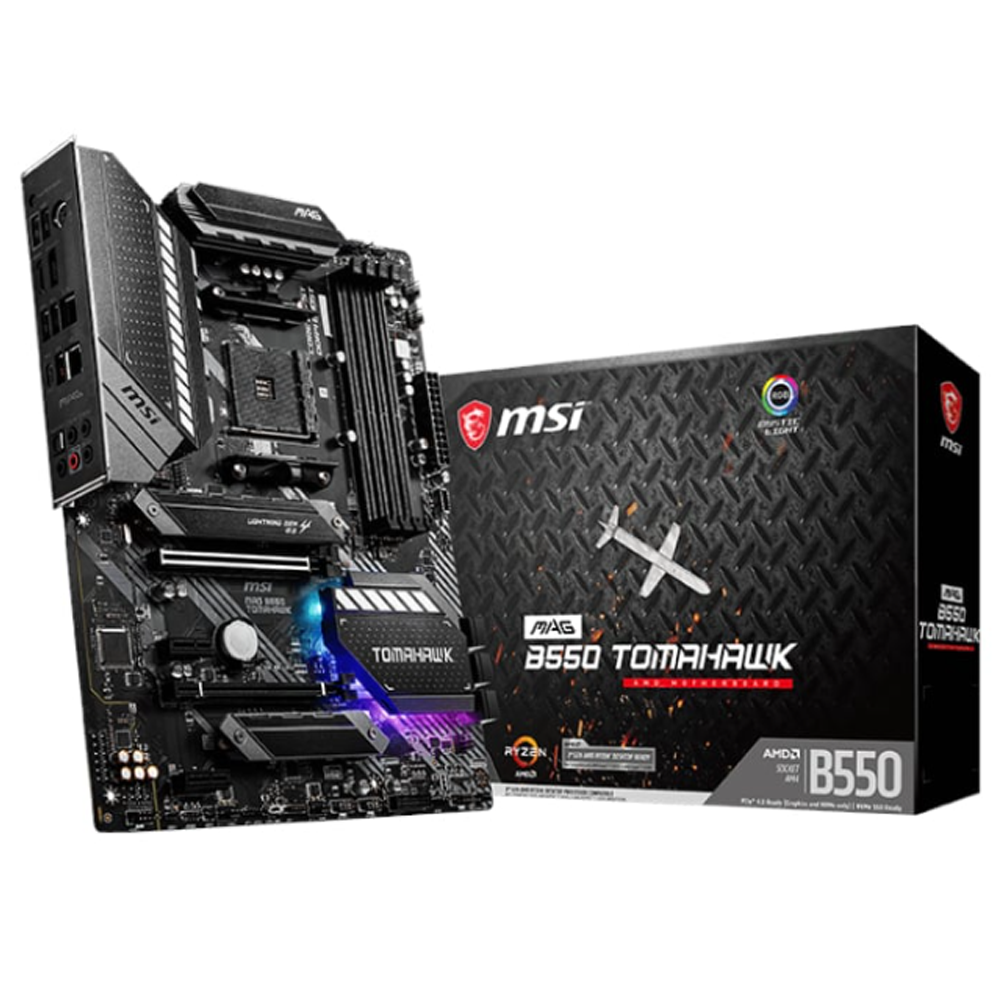

- MSI MAG B550 Tomahawk AM4 ATX Motherboard – Black x1
- SATA cables x2
- Driver DVD x1
- User Manual x1
- Quick Install Guide x1
