Description
- Essentials:
- Product Collection: 14th Generation Intel® Core™ i9 Processors
- Code Name: Products formerly Raptor Lake
- Vertical Segment: Desktop
- Processor Number: i9-14900K
- CPU Specifications:
- Total Cores: 24
- # of Performance-cores: 8
- # of Efficient-cores: 16
- Total Threads: 32
- Max Turbo Frequency: 6.0GHz
- Intel® Thermal Velocity Boost Frequency: 6.0GHz
- Intel® Turbo Boost Max Technology 3.0 Frequency: 5.8GHz
- Performance-core Max Turbo Frequency: 5.6GHz
- Efficient-core Max Turbo Frequency: 4.4GHz
- Performance-core Base Frequency: 3.2GHz
- Efficient-core Base Frequency: 2.4GHz
- Cache: 36 MB Intel® Smart Cache
- Total L2 Cache: 32 MB
- Processor Base Power: 125 W
- Maximum Turbo Power: 253 W
- Memory Specifications:
- Max Memory Size (dependent on memory type): 192 GB
- Memory Types: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
- Max # of Memory Channels: 2
- Max Memory Bandwidth: 89.6 GB/s
- Processor Graphics:
- Processor Graphics: Intel® UHD Graphics 770
- Graphics Base Frequency: 300MHz
- Graphics Max Dynamic Frequency: 1.65GHz
- Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
- Execution Units: 32
- Max Resolution (HDMI): 4096 x 2160 @ 60Hz
- Max Resolution (DP): 7680 x 4320 @ 60Hz
- Max Resolution (eDP – Integrated Flat Panel): 5120 x 3200 @ 120Hz
- DirectX* Support: 12
- OpenGL* Support: 4.5
- OpenCL* Support: 3.0
- Multi-Format Codec Engines: 2
- Intel® Quick Sync Video: Yes
- Intel® Clear Video HD Technology: Yes
- # of Displays Supported: 4
- Expansion Options:
- Direct Media Interface (DMI) Revision: 4.0
- Max # of DMI Lanes: 8
- Scalability: 1S Only
- PCI Express Revision: 5.0 and 4.0
- PCI Express Configurations: Up to 1×16+4, 2×8+4
- Max # of PCI Express Lanes: 20
- Advanced Features:
- Intel® Gaussian & Neural Accelerator: 3.0
- Intel® Thread Director: Yes
- Intel® Deep Learning Boost (Intel® DL Boost): Yes
- Intel® Speed Shift Technology: Yes
- Intel® Thermal Velocity Boost: Yes
- Intel® Turbo Boost Max Technology 3.0: Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® Hyper-Threading Technology: Yes
- Intel® 64: Yes
- Instruction Set: 64-bit
- Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle States: Yes
- Enhanced Intel SpeedStep® Technology: Yes
- Thermal Monitoring Technologies: Yes
- Intel® Volume Management Device (VMD): Yes
- Security & Reliability
- Intel® Standard Manageability (ISM): Yes
- Intel® Control-Flow Enforcement Technology: Yes
- Intel® AES New Instructions: Yes
- Secure Key: Yes
- Intel® OS Guard: Yes
- Intel® Trusted Execution Technology: Yes
- Execute Disable Bit: Yes
- Intel® Boot Guard: Yes
- Mode-based Execute Control (MBEC): Yes
- Intel® Stable IT Platform Program (SIPP): Yes
- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
- Intel® Virtualization Technology (VT-x): Yes
- Intel® Virtualization Technology for Directed I/O (VT-d): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
WHAT’S IN THE BOX:

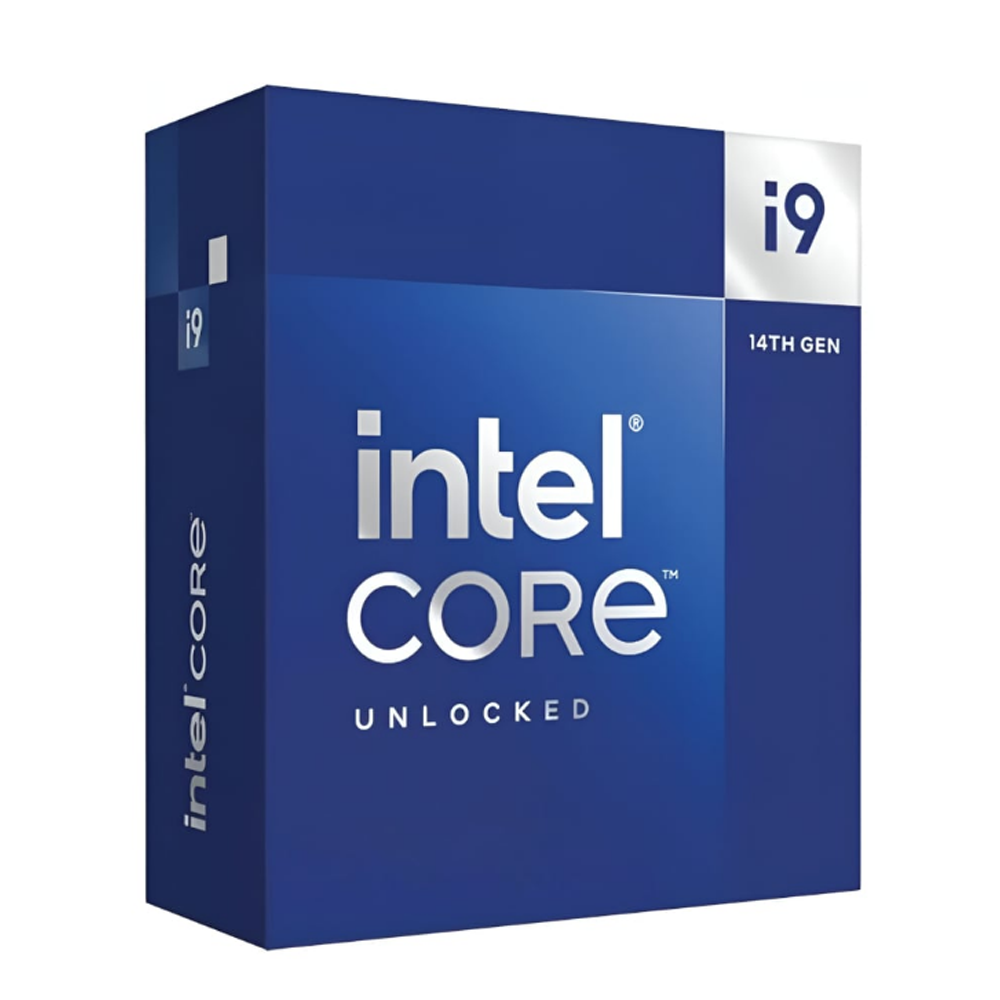

- Intel 14th Gen Core i9-14900K LGA1700 3.2GHz 16-Core CPU x1
