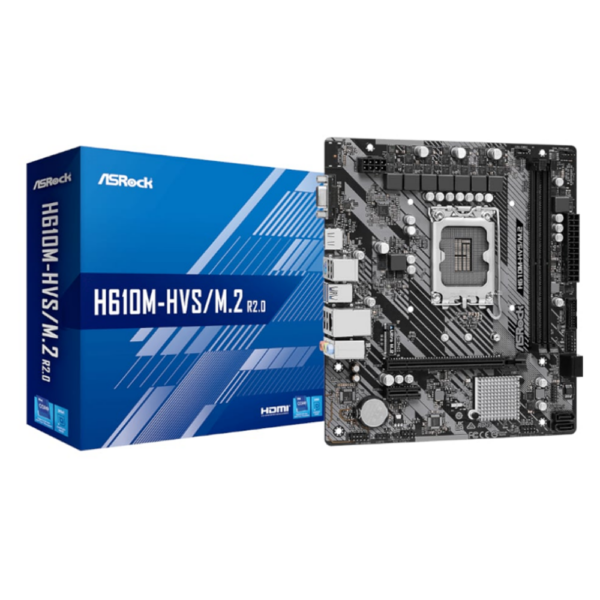

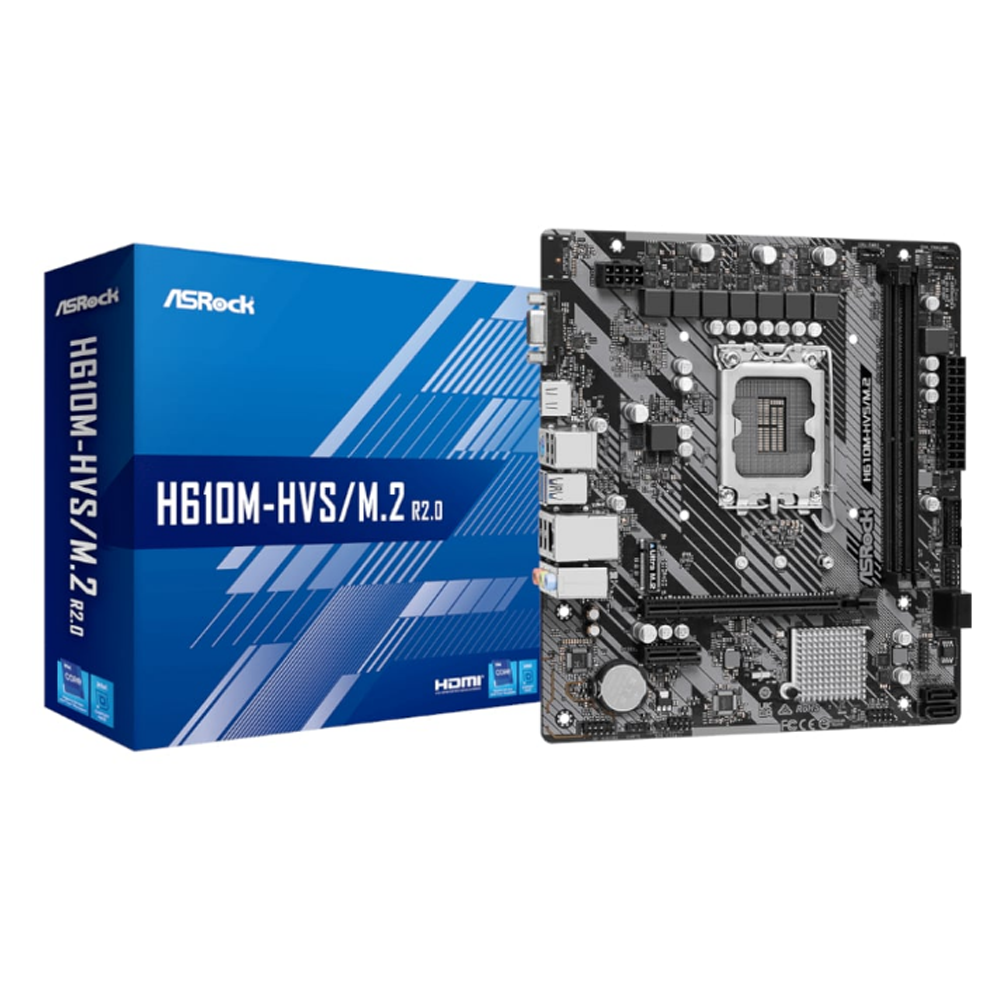

ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard

Description

• Socket: Intel LGA 1700
• CPU (Max Support): Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
• Chipset: Intel^® H610
• DDR4 Memory: Supports DDR4 non-ECC, un-buffered memory up to 3200 | Supports ECC UDIMM memory modules (operate in non-ECC mode) | Supports Intel^® Extreme Memory Profile (XMP) 2.0
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 64
• PCI-E x16: 1
• PCI-E GEN: Gen3
• PCI-E x1: 1
• SATAIII: 4
• M.2 Slot: 1
• TPM (Header): 1
• LAN: Realtek RTL8111H Gigabit LAN
• USB 3.2 ports (Front): 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 2(Gen 1, Type A)
• USB 2.0 ports (Front): 2(Type A)
• USB 2.0 ports (Rear): 4(Type A)
• Serial Ports(Front): 1
• Audio ports (Rear): Realtek ALC897 Audio Codec (7.1 CH HD Audio)
• D-Sub Port: 1
• HDMI: 1
• Form Factor: M-ATX
• Operating System: Support for Windows® 10 64-bit / 11 64-bit

WHAT’S IN THE BOX:

• ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard – Black x 1
